The Custom Graphic Positions feature allows users to precisely position logos, graphics, or designs on a 3D apparel model. This ensures accurate placement when exporting and printing final designs.

With category-based positioning, different product categories (T-shirts, Hoodies, Shorts, etc.) can have unique position settings. When a product from a specific category is selected, its predefined graphic positions will be automatically applied in the Customizer.

---

1️⃣ Accessing the Custom Position Menu

To begin configuring custom graphic positions, navigate to:

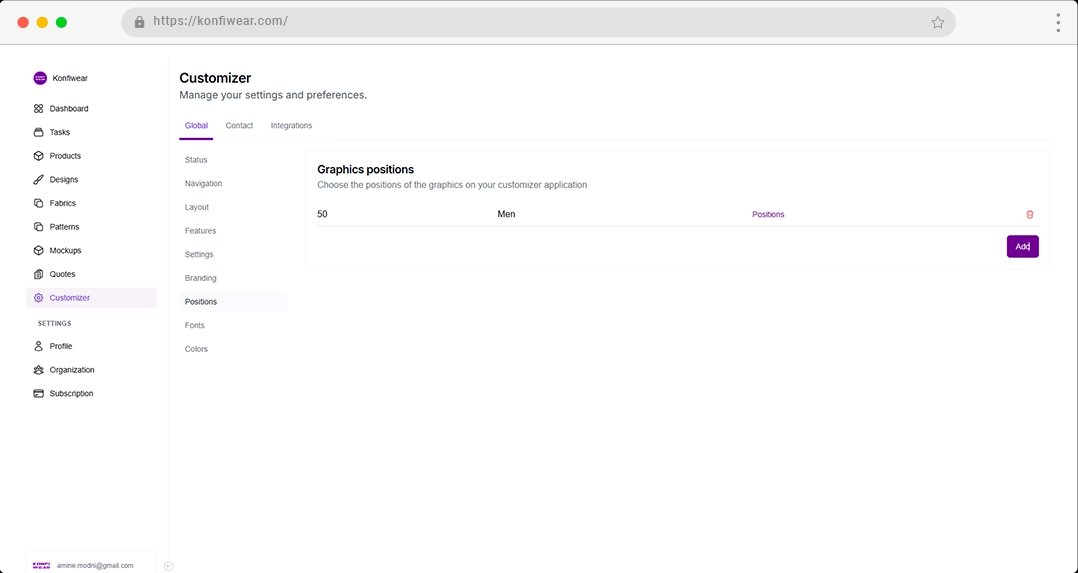

📌 Customizer → Positions

1. Click "Add" to create a new graphic position.
2. Select the appropriate Category (T-Shirts, Hoodies, Shorts, etc.).
3. Enter a Position Label (e.g., "Left Chest Logo" for T-Shirts, "Side Logo" for Shorts).

---

2️⃣ Configuring a New Graphic Position

1. Upload a preview image of the graphic/logo.
2. Define the left (X) and top (Y) position values.
3. Click Save to store the position.

📌 Each position is associated with a specific product category, ensuring category-specific placements in the Customizer.

---

3️⃣ Assigning Positions Based on Categories

Each position must be assigned to a specific product category. This allows different categories of apparel to have customized placements.

📌 Once saved, the assigned positions will be automatically updated in the Customizer when a product from the respective category is selected.

---

4️⃣ Calculating X, Y Coordinates from Illustrator

To get precise positioning, follow these steps in Adobe Illustrator:

1. Open a new 2048 x 2048 px canvas.
2. Place your graphic/logo at the desired position.
3. Use the Transform Tool to get the X, Y position.
4. Convert the values into a ratio by dividing by 2048.

---

Viewing the Position on the Customizer

Once the custom position is set, users can preview it in real-time on the Customizer.

Steps to Preview:

1. Open the Customizer and select the apparel product.
2. Go to Graphics and try to upload a graphic (logo).
3. The graphic should appear in the assigned position on the 3D product.

---

✅ Summary & Best Practices

• Use a 2048 x 2048 canvas for accurate position scaling.
• Extract exact X, Y positions from Adobe Illustrator.
• Convert values into a ratio by dividing by 2048.
• Assign custom positions by product category for precise positioning.
• Preview the positioning in the Customizer before finalizing.

🚀 Next Step: Test and refine your graphic positioning by adjusting the X, Y values!

---

📌 FAQs & Troubleshooting

🔹 Why isn’t my graphic showing in the correct position?

Make sure the X, Y values are properly calculated based on a 2048 x 2048 canvas.

🔹 Can I apply the same position to multiple categories?

Yes! You can assign the same X, Y position to multiple product types if needed.

🔹 Do changes update automatically in the Customizer?

Yes, when you save a position, it will be automatically applied when selecting a product from that category.

---

Need Help?

📩 Reach out to our support team for any questions!
